Teac:
Reference 300
A-H300
INTEGRATED AMPLIFIER
|
Features
- 35W + 35WRMS 8 Ohms
- Motor-driven volume control
- 6-Input selector: Tuner, Tape 1,
Tape2/MD, CD, Phono, Aux
- Record selector: (Tape 1-2, Tape 2-1,
Off, Source)
- Balance control
- Tone control (bass, treble)
- CD Direct
- Headphone jack
- Binding post speaker terminals
- System Remote Control Included
Specifications
| Power
Output: |
35W
+ 35W RMS (8 Ohms) |
| Total
Harmonic Distortion: |
<0.1%
(1kHz, 8 Ohms 35W) |
| Signal-to-Noise
(IFH-A): |
Phono:
70dB
Aux, CD, Tape, Tuner: 95dB
CD Direct: 95dB |
Input
Sensitivity/
Impedance: |
Phono:
2.6mV/10k
Aux, CD, Tape, Tuner: 180mV/10k |
| Frequency
Response: |
5Hz-80kHz |
| Tone
Control: |
Bass:
+/- 10dB (100Hz)
Treble: +/- 10dB (10kHz) |
| Power
Consumption: |
85W |
| Dimensions
WxHxD (USA): |
215x110x305mm
(8½" x 4¼" x 12¼")
4.2kg (9 lbs) |
|

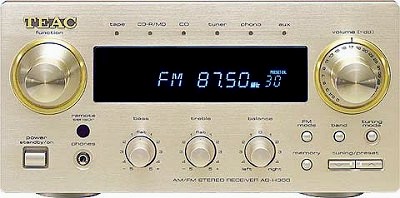

AG-H300
STEREO RECEIVER
|
Features
- PLL (Phase-Locked Loop) synthesizer
tuning system
- 30-AM/30-FM preset station memory
- Stereo 30W + 30WRMS
- Motor-driven volume control
- 6-Input selector
- FL display
- Bass, treble, balance controls
- Headphone jack
- Binding post speaker terminals
- Unswitched AC outlet x 2
- System Remote Control Included
Specifications
| AMPLIFIER
SECTION |
|
| Power
Output: |
30W
+ 30W RMS (8 Ohms) |
| Total
Harmonic Distortion: |
<0.09%
(1kHz, 8 Ohms) |
| Signal-to-Noise
(IFH-A): |
Phono:
65dB
Aux, CD, Tape, Tuner: 90dB |
Input
Sensitivity/
Impedance: |
Phono:
2.5mV
Aux, CD, Tape, Tuner: 200mV/47k |
| Frequency
Response: |
40Hz-80kHz
+/- 3dB |
| Tone
Control: |
Bass:
+/- 10dB (100Hz)
Treble: +/- 10dB (10kHz) |
| TUNER
SELECTION |
|
| Frequency
Range: |
FM:
87.5MHz-108MHz
AM: 522kHz-1620kHz |
| Total
Harmonic Distortion: |
Mono
FM: 0.4%
Stereo FM: 0.5%
AM: 1.5% |
| Signal-to-Noise
(IFH-A): |
Mono
FM: 65dB
Stereo FM: 60dB
AM: 35dB |
| Frequency
Response: |
30Hz-15kHz
+1-1.5dB |
| GENERAL |
|
| Power
Consumption: |
100W |
| Dimensions
WxHxD (USA): |
215x110x305mm
(8½" x 4¼" x 12¼")
4.5kg (10 lbs) |
|

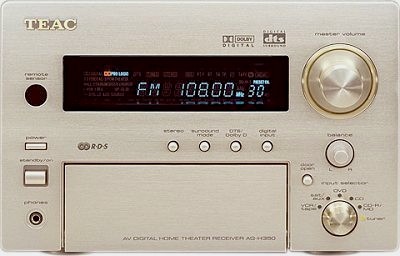

AG-H350
DTS and DOLBY DIGITAL SURROUND A/V RECEIVER
|
Features
| Surround
Power: 50 Watts x 5ch |
| Discrete
Output Circuit Configuration (D.O.C.C) |
| 96
kHz/24-bit D/A Converter |
| DTS
Digital Surround Converter |
| Dolby
Digital and Dolby Pro-Logic Surround Decoder |
| 4-DSP
Listening Modes (Theater/Hall/Stadium/Disco) |
| Quartz
PLL Synthesized Tuning System |
| 30
FM and 30 AM Station Presets |
| Electronically
and Manually Controlled Encoder Volume |
| 90
Min, Sleep Timer |
| Front
Panel Hadphone Jack |
| Full
Function Remote Control |
| Dimensions: |
W215
x H143 x D388mm
W8-7/8" x H5-5/8" x D15-1/4" |
| Weight: |
7.6 kg, 16-12/16lbs
|
Rear Panel Terminals
| S-Video
Input/Output Terminals (Min DIN jack): |
DVD
In, VCR In/Out, SAT/AUX In, MONITOR Out |
Video
Input/Output Terminals
(RCA jack): |
DVD
In, VCR In/Out, SAT/AUX In, MONITOR Out |
| DTS/Dolby
Digital/PCM Input Terminals: |
Coaxial
(RCA jack), Optical (TOS Link x2) |
| DTS/Dolby
Digital/PCM Output Terminals: |
Coaxial
(RCA jack), Optical (TOS Link) |
| Audio
Input/Output Terminals (RCA jack): |
DVD In, VCR In/Out, SAT/AUX In,
CD-R/MD In/Out, CD In
|
| Subwoofer
for Pre-Out Terminal (RCA jack) |
|
| Speaker
Terminals (Screw Type): |
Front
L/R, Center, Rear L/R |
| Antenna
Terminals: |
FM(DIN
Type), AM(Push Type) |
|

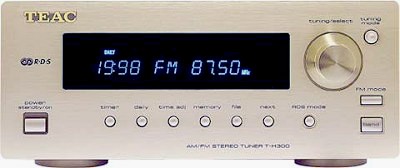

T-H300
AM/FM STEREO TUNER
|
Features
- PLL (Phase-Locked Loop) synthesizer
tuning system
- 30-AM/30-FM preset station memory
- Auto memory
- Timer On/Off switch with clock
function
- FL display
- Digital clock
- Display dimmer (remote)
Specifications
| Frequency: |
FM:
87.5MHz-108MHz
AM: 522kHz-1620kHz |
| Sensitivity
(FM): |
3.0µV
(S/N 30dB) |
| Total
Harmonic Distortion: |
Mono
FM: 0.15%
Stereo FM: 0.3%
AM: 1.5% |
| Signal-to-Noise: |
Mono
FM: 700dB
Stereo FM: 65dB
AM: 40dB |
| Frequency
Response: |
20Hz-15kHz |
| Image
Rejection: |
70dB |
| Power
Consumption: |
6W |
| Dimensions
WxHxD (USA): |
215x93x305mm
(8½" x 3¾" x 12 1/16")
2.3kg (5 lbs) |
|

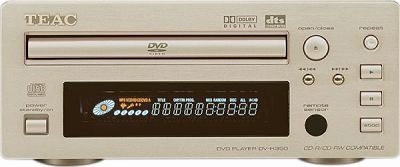

DV-H350
DVD PLAYER
|
Features
| Video
Functions: |
| Multi
Screen Aspect Ratio |
| Digital
Zoom Function (x2, x4 Still & Moving Pictures) |
| Multi
Speed Scan And Slow |
| Resume
Function |
| Audio
Functions: |
| High
Quality Digital Sound |
| Dolby
Digital/DTS/PCM Digital Output |
| 96kHz/24-bit/D/A
Converter |
| Other
Functions: |
| Playback
DVD/VCD/CD/CD-RW discs and MP3 |
| Multi-language
Subtitles and Sound |
| High
Speed Navigation |
| Full
Function Remote Control |
| Rear
Panel Terminals: |
| Component
Video Output: RCA Jack x3 (Y/CB/CR) |
| S-Video
Output: Mini DIN Jack x1 |
| Composite
Video Output: RCA Jack x 1 |
| Digital
Audio Output: |
|
Optical
(TOS Link) x 1, Coaxial (RCA jack) x 1
Down
Mixed Audio Output: RCA jack x 2 (L/R) |
| Dimensions: |
| W215 x H90 x D300 mm
|
| Weight: |
| 4.0kg
(unfixed) |
|

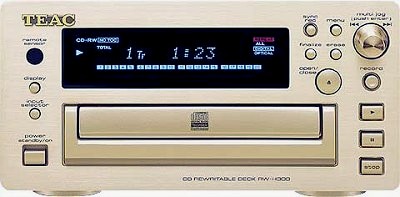

RW-H300
CD-R/CD-RW RECORDER
|
Features
- CD-R-DA / CD-RW-DA (Audio Format)
- On-board Fs converter (32 or 48 kHz to
44.1 kHz)
- Erase function for CD-RW
- CD-sync recording (all or select
tracks)
- Auto or manual track increment
- Program, repeat, and shuffle play
- L/R independent recording level
control
- Tos-Link optical digital input/output
- RCA analog inputs/outputs
- Remote Control Included
Specifications
| Frequency
Response: |
20Hz-20kHz
+/-1dB |
| Signal-to-Noise
(IFH-A): |
85dB |
| Total
Harmonic Distortion: |
<0.015% |
| Channel
Separation: |
75dB |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
9W |
| Dimensions
WxHxD (USA): |
215x110x317mm
(11½" x 5¼"
x 11½")
4.8kg
(8 lbs) |
|

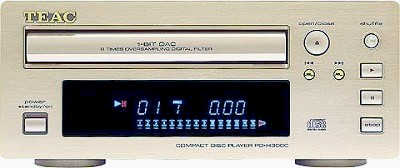

PD-H300
CD PLAYER
|
Features
- 1-Bit D/A converter
- 8x oversampling digital filter
- Multi-function FL display
- Timer play
- Shuffle play (remote)
- Repeat play ONE/ALL/A-B (remote)
- 32 track program memory
- Music calendar display
- Tos-Link optical digital output for MD/DAC/CD-R
Specifications
| Digital
Filter: |
8-Times
Oversampling |
| Frequency
Response: |
20Hz-20kHz
+/-2dB |
| Signal-to-Noise
(IFH-A): |
<90dB |
| Total
Harmonic Distortion: |
<0.02% |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
10W |
| Dimensions
WxHxD (USA): |
215x93x305mm
(8½" x 3¾" x 12¼")
2.8kg (6 lbs) |
|

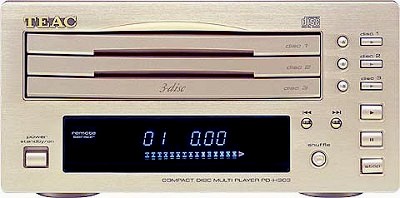

PD-H303
3-CD CHANGER
|
Features
- 3 CD Changer
- 1-Bit D/A converter
- 8x oversampling digital filter
- Music calendar display
- 32 track program memory
- Shuffle play (remote)
- Repeat play ONE/ALL/A-B (remote)
- High-speed search
- Multi-function FL display
- Tos-Link optical digital output
Specifications
| Digital
Filter: |
8-Times
Oversampling |
| Frequency
Response: |
20Hz-20kHz
2dB |
| Signal-to-Noise
(IFH-A): |
<90dB |
| Total
Harmonic Distortion: |
<0.02% |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
10W |
| Dimensions
WxHxD (USA): |
215x110x329mm
(8½" x 4¼" x 13")
3.9kg (8 lbs) |
|

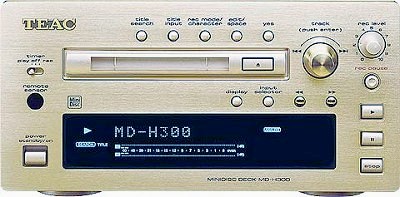

MD-H300
MINI-DISC DECK
|
Features
- Edit function with multi-jog dial:
divide/combine/erase/move/title
- Auto and manual track marking, auto
track search
- Auto space
- Sound/CD sync, record
- Cue/review
- Program/Shuffle play
- Timer Record/Play
- Auto-ready
- Multi-function FL display
- Repeat play ONE/ALL/A-B
- Tos-Link digital input &output
- Remote Control Included
Specifications
| Record/Play
Time: |
74
Minutes(max) |
| Sampling
Frequency: |
44.1kHz |
| Frequency
Response: |
10Hz-20kHz
5dB |
| Signal-to-Noise: |
>98dB
(playback) |
| Output
Voltage: |
2V
RMS |
| Power
Consumption: |
19W |
| Dimensions
WxHxD (USA): |
215x110x302mm
(8½" x4¼" x 11 7/8")
3.0kg (6.6 lbs) |
|

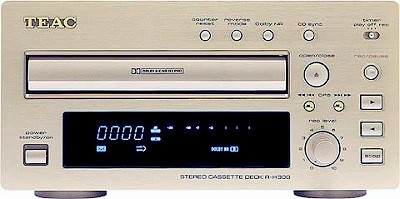

R-H300
CASSETTE DECK
|
Features
- Full logic transport control
- Dolby B/C Noise Reduction system with
HX Pro
- CD synchro-dubbing (CD to Tape)
- Multi-function FL display
- Digital tape counter
- Auto tape selector
- CPS (Program Search)
Specifications
| Motor: |
DC
Motor |
| Frequency
Response: |
Normal:
Normal: 40Hz-14kHz
CrO2a: 40Hz-15kHz
Metal: 40Hz-16kHz |
| Wow
and Flutter |
0.15%
(JIS, Wrms) |
| Signal-to-Noise
(IFH-A): |
Dolby
C NR ON: 75dB
Dolby B NR ON: 65dB
Dolby NR OFF: 55dB |
| Power
Consumption: |
8W |
| Dimensions
WxHxD (USA): |
215x110x305mm
(8½" x 4¼" x 12½")
3.3kg (7 lbs) |
|

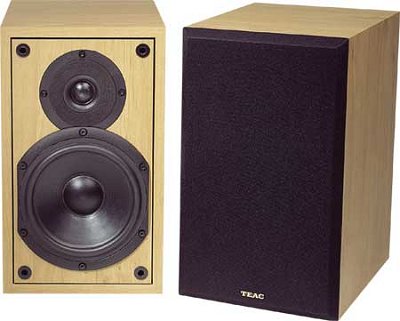

LS-300U
2-Way Speaker System
|
Features
- Designed to match TEAC Reference 300
systems
- 2-way acoustic suspension system
- 90W (max music power) input
- 4 Ohms impedance
- Frequency response: 45Hz to 20kHz
- 1 x 19mm dome tweeter
- 1 x 130mm cone midrange/woofer
- Removable grill
- Beech-Iook finish
- Dimensions: 168 x 300 x 270mm (WxHxD)
- Weight: 4.5kg
|
