Harman/Kardon: DVD-Player




DVD-Player (Modelos Fora de Linha)

  • DVD-1

  • DVD-5

  • DVD-10

  • DVD-20

  • DVD-21

  • DVD-22

  • DVD-25

  • DVD-27

  • DVD-29

  • DVD-30

  • DVD-31

  • DVD-37

  • DVD-38

  • DVD-39

  • DVD-47

  • DVD-48

  • DVD-49

  • DVD-50

  • DVD-101




Progressive Scan DVD-Player DVD-22

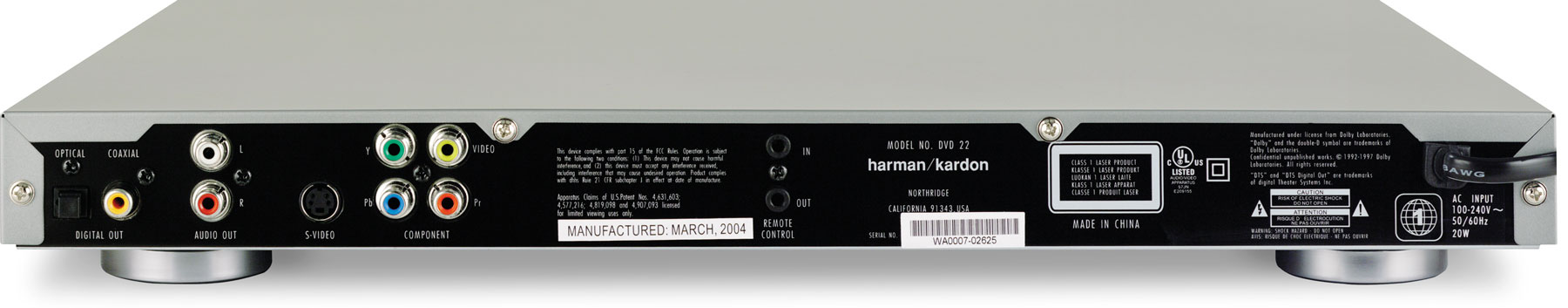

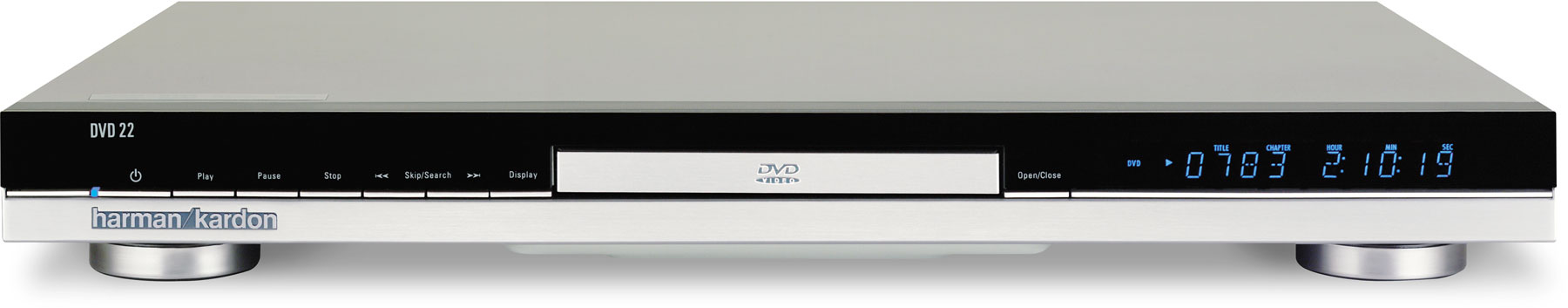

Super Foto | Painel Frontal | Painel Traseiro



legal

Raio-X

(Fotos do interior do aparelho)



DVD-22BK - série especial com painel todo preto



Especificações Técnicas



Applicable Discs :

Disc formats: 5-inch (12cm) or 3-inch (8cm) DVD-Movie, Standard conforming DVD-R, DVD+R, DVD-RW, DVD+RW, VCD, CD, CD-R, CD-RW or MP3 discs
Region Code: DVD-Movie discs with Region Code 1 or 0 only
DVD-Layers: Single Side/Single Layer, Single Side/Dual Layer, Dual Side/Dual Layer
Audio Formats: Linear PCM, MPEG, Windows Media 9, Dolby Digital or DTS Audio Discs
Still image format: JPEG

Video Signal System :

NTSC

Composite Video Output :

1V p-p/75 ohms, sync negative polarity

S-Video Output :

Y/Luminance: 1V p-p/75 ohms, sync negative polarity
C/Chrominance: 0.286V p-p

Component Video Output :

Y: 1V p-p/75 ohms, sync negative polarity
Pr: 0.7V p-p/75 ohms
Pb: 0.7V p-p/75 ohms

Analog Audio Output :

2V rms max

Frequency Response :

DVD (Linear PCM): 2Hz – 22kHz +0/–0.5dB (48kHz sampling)
DVD (Linear PCM): 2Hz – 44kHz +0/–0.5dB (96kHz sampling)
CD: 2Hz – 20kHz +0/–0.5dB

Signal-to-Noise Ratio :

105dB (A-weighted)

Dynamic Range :

DVD: 100dB (18-bit)/105dB (20-bit)
CD/DVD: 96dB (16-bit)

Total Harmonic Distortion :

DVD/CD: 0.0025% at 1kHz

Wow and Flutter :

Below Measurable Limits

Power Requirement :

110 – 240VAC/50 – 60Hz

Power Consumption :

2 Watts (On/Standby)/20 Watts (Max)

Dimensions
(H x W x D) :

1-15/16" x 17-3/10" x 12"
(49mm x 440mm x 330mm)

Weight :

7.35 lb (3.34kg)
